Voltage tester

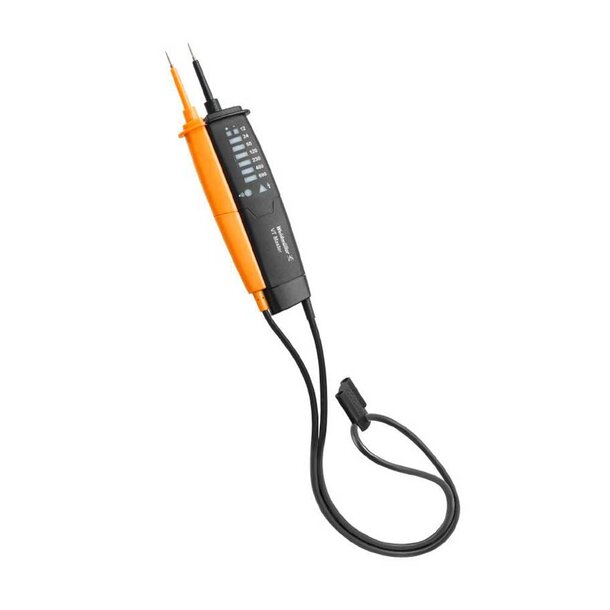

Voltage Tester – Reliable Control in Professional Quality

Safety starts with the right equipment: with the two-pole voltage tester VT MASTER from Weidmüller you make a precise and reliable choice for your daily work. Thanks to the clear LED display, integrated acoustic continuity tester, and GS38-compliant test tips, you stay fully in control with every measurement – in a robust, ergonomically optimized design.

PRODUCT DETAILS:

• Type: Two-pole voltage tester with LED display
• Voltage range: AC/DC 12–690 V
• Display: LED for 12 / 24 / 50 / 120 / 230 / 400 / 690 V
• Continuity test: Visual & acoustic (integrated buzzer)
• Standards: Tested according to IEC 61243-3:2014 (DIN EN 61243-3:2015-08)
• Insulation test: Up to 6 kV
• Test tip protection: GS38-compliant
• Protection class: IP54 – suitable for demanding conditions
• Measuring category: CAT III 600 V
• Temperature range: –15 °C to +55 °C
• Battery: 2× AAA (1.5 V)
• Dimensions: 235 × 60 × 28 mm
• Weight: 158 g
• Environment: RoHS & REACH compliant (SCIP ID available)

PRODUCT ADVANTAGES:

• Voltage measurement: 12–690 V AC/DC
• Continuity test: with LED & acoustic signal
• Robust & splash-proof: IP54
• Safety: GS38-compliant test tips, CAT III (600 V)
• Lightweight & compact: only 158 g
• Practical: Ideal for construction site and workshop

Control with Safety

Whether installing, testing, or maintaining – the VT MASTER always gives you reliable feedback on voltage conditions. Compact, safe, and precise – a tool that should never be missing from your toolkit.

Get yours now and work better with safety!
